  • XS Scuba Thermo Isolation Manifold PRO
  • XS Scuba Thermo Isolation Manifold DIN
  • XS Scuba Thermo Isolation Manifold 7/8"
1 3

VMT200-30N

Xs scuba thermo manifold valves – pro, din & 7/8” options (doubles manifold system)

$290.00
$290.00
In offerta Esaurito
Spese di spedizione calcolate al check-out.
Only 2 units left
Manifold Style: PRO
Service Pressure: 3000 psi
Have a Question

Free standard Shipping on $100+

Description

The XS Scuba Thermo Manifold Valves are engineered for long life, heavy use, and high-performance diving, making them a trusted choice for technical divers and demanding environments. Built from marine-grade brass with triple bright chrome plating, these manifolds deliver exceptional durability and corrosion resistance in saltwater conditions.

Precision-machined valve stems ensure smooth, reliable operation, while the easy-grip rubber handwheel with large ribs allows for effortless turning—even with thick gloves.

Designed for maximum gas flow and modular versatility, Thermo manifolds feature access plugs for left/right configurations, allowing them to be used as either a full manifold system or individual valves.

Key Features (All Models):

  • Marine-grade brass construction with triple chrome plating
  • High gas flow for optimal regulator performance
  • Precision-machined valve stems for smooth operation
  • Soft rubber handwheel with large ribs for easy grip
  • One-piece safety assembly protected within valve body
  • Teflon®-plated seat with high-strength brass and nylon insert
  • Copper crush washer sealed bonnet
  • Modular access plugs (R/L) for flexible configuration
  • Screw-in dip tube with hex tightening feature
  • Meets CGA V9-2009 standards

Available Options:

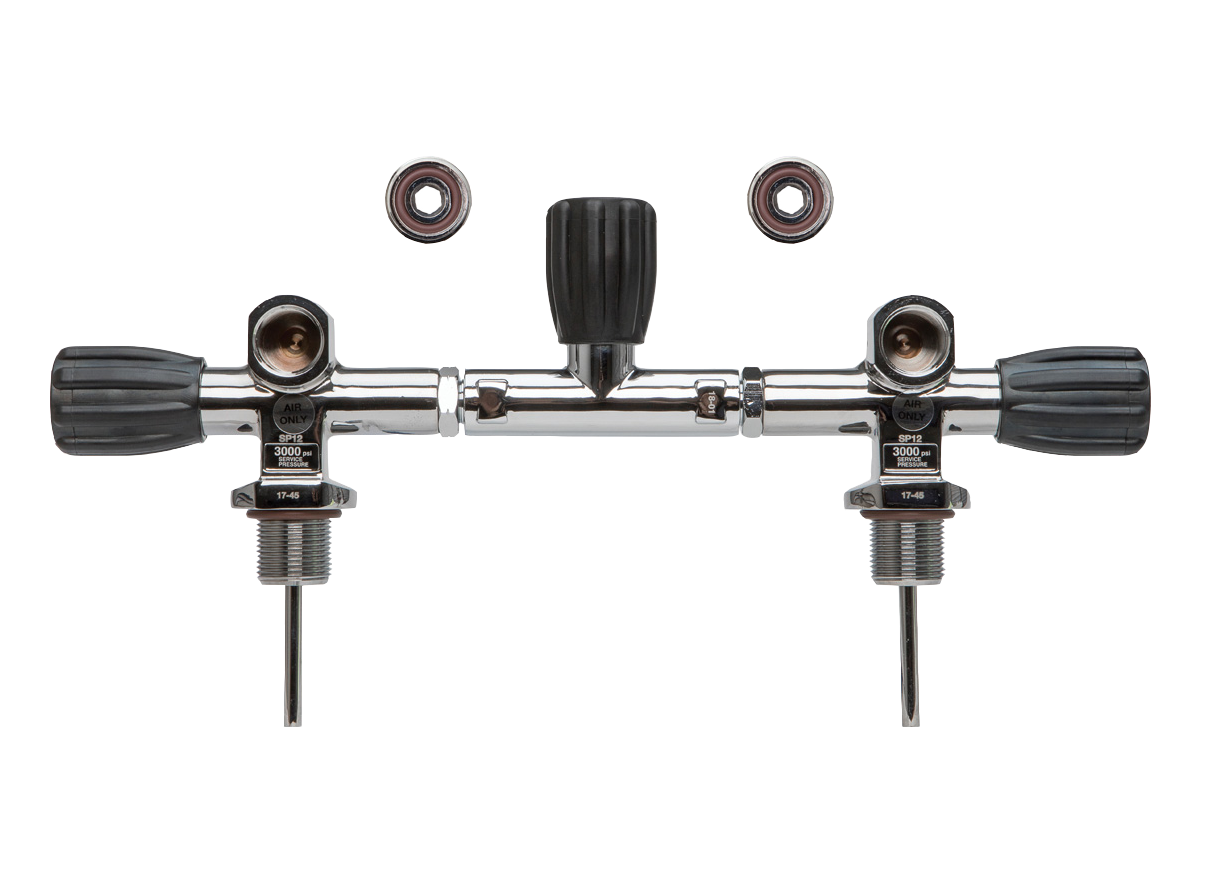

Thermo Manifold – PRO (DIN/Yoke Convertible)

  • DIN/Yoke with removable spin-out insert
  • Center-to-center: 215 mm (8.46”) ± 5 mm
  • 3/4”-14 NPSM standard inlet threads
  • Ideal for divers needing maximum flexibility across fill systems

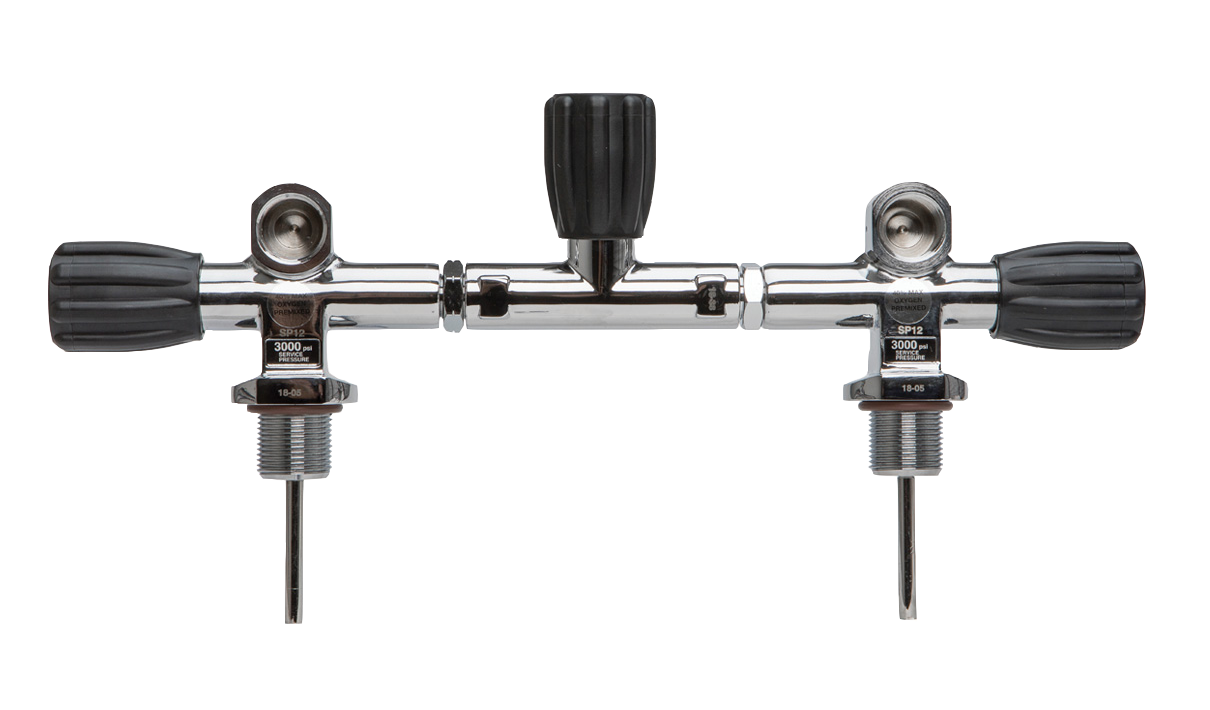

Thermo Manifold – DIN (300 Bar)

  • Dedicated 300 bar DIN configuration
  • Center-to-center: 215 mm (8.46”) ± 5 mm
  • 3/4”-14 NPSM standard inlet threads
  • Built for high-pressure, technical diving applications

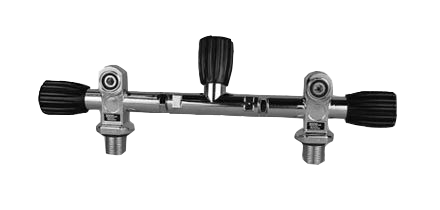

Thermo Manifold – 7/8”

  • Center-to-center range: 210.5 mm – 220 mm (215 mm optimal)
  • Compatible with Highland bands and standard doubles setups
  • Black tactile rubber handwheel for enhanced grip
  • Designed for versatility and precise fitment

Ideal For:

  • Technical diving and doubles configurations
  • High-performance gas delivery systems
  • Dive professionals and advanced divers
  • Saltwater and heavy-use environments
Manifold Assembly Instructions
Assembling Twin Cylinders
