Highland vortex regulator – balanced cold water scuba regulator (din or yoke)

Description

The Highland Vortex Regulator is a premium balanced regulator system engineered for exceptional breathing performance in the most demanding diving environments. Designed specifically for public safety, technical, and cold-water divers, the Vortex delivers smooth, reliable airflow regardless of cold temperatures, strong currents, silt, or contaminated water conditions.

Built for water temperatures below 50°F (10°C), the environmentally sealed first stage incorporates an external secondary diaphragm that isolates the main spring chamber from water, dramatically reducing the potential for ice formation. Additional heat exchanger fins integrated into the first stage further improve freeze resistance, making the Vortex an outstanding choice for year-round cold-water diving.

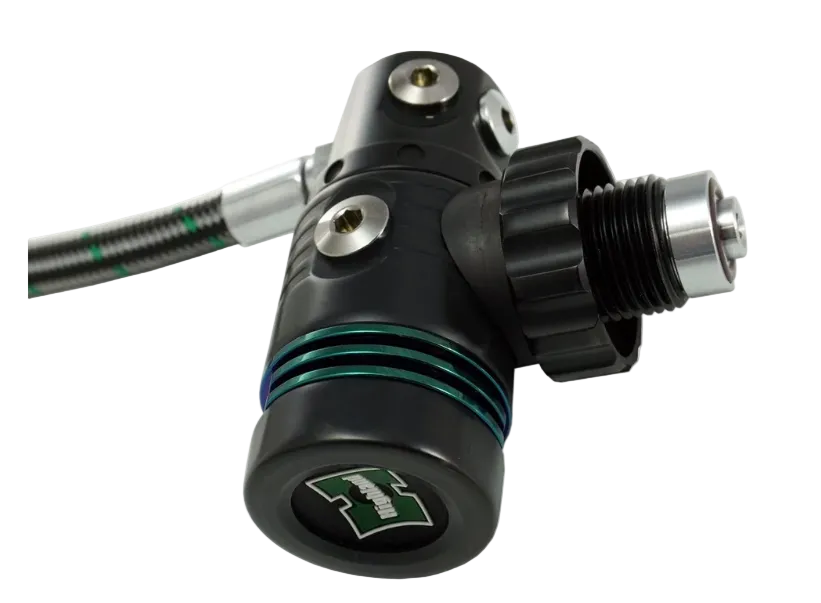

The balanced diaphragm first stage features a rotating swivel turret with a dedicated fifth low-pressure port, allowing for exceptionally clean hose routing on backmount, sidemount, and twin-cylinder configurations. Two high-pressure ports provide simultaneous use of a wireless transmitter and an analog pressure gauge.

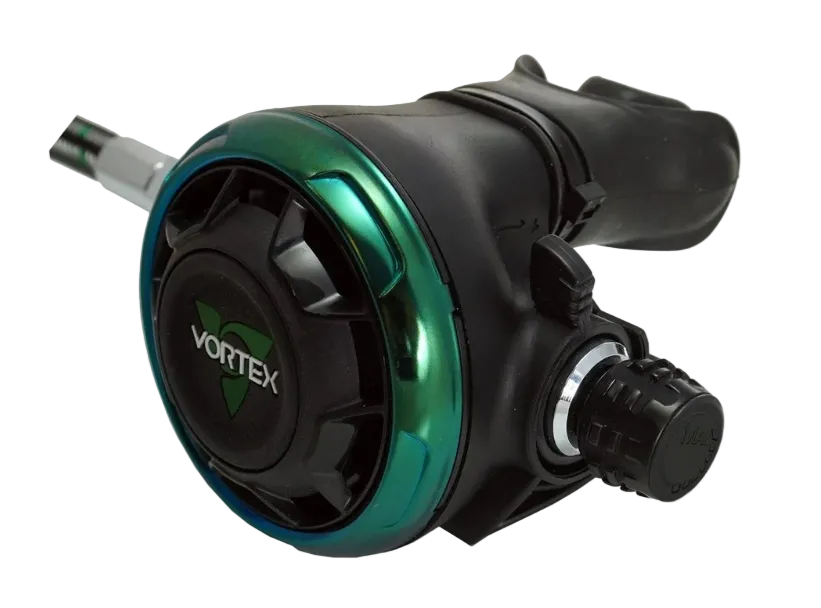

The pneumatically balanced second stage offers effortless breathing performance and complete diver adjustment. An external inhalation adjustment knob allows divers to fine-tune breathing resistance, while the integrated Venturi lever helps prevent unwanted free-flow at the surface. A built-in heat exchanger further improves cold-water reliability, and the second stage can be converted for left- or right-hand hose routing using an optional conversion kit.

Each complete regulator includes a premium Miflex braided low-pressure hose, providing exceptional flexibility, reduced weight, and increased durability compared to traditional rubber hoses.

Compatible with EAN40 right out of the box, the Highland Vortex is equally at home in recreational, technical, public safety, and advanced cold-water diving applications.

Features:

• Balanced diaphragm first stage for consistent breathing performance
• Certified for cold-water diving below 50°F (10°C)
• Environmentally sealed first stage prevents water intrusion
• Integrated heat exchanger fins improve freeze resistance
• Swivel turret with dedicated fifth low-pressure port
• Two high-pressure ports for transmitter and SPG
• Pneumatically balanced second stage
• Adjustable inhalation resistance control
• Adjustable Venturi lever minimizes free-flow
• Heat exchanger on second stage for additional cold-water protection
• Reversible left/right second stage compatibility
• Comfortable orthodontic Comfo-Bite mouthpiece with palate bridge
• Premium Miflex braided hose included
• Nitrox compatible up to EAN40 without modification
• Durable black chrome finish with PVD-coated heat exchanger

Available Configurations:

• DIN Complete Regulator

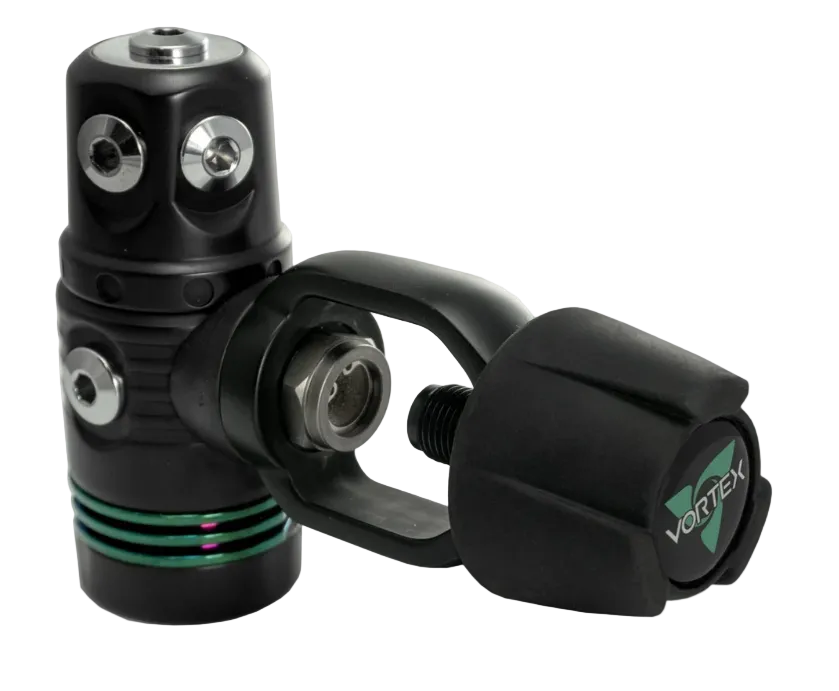

• Yoke Complete Regulator

Available Components:

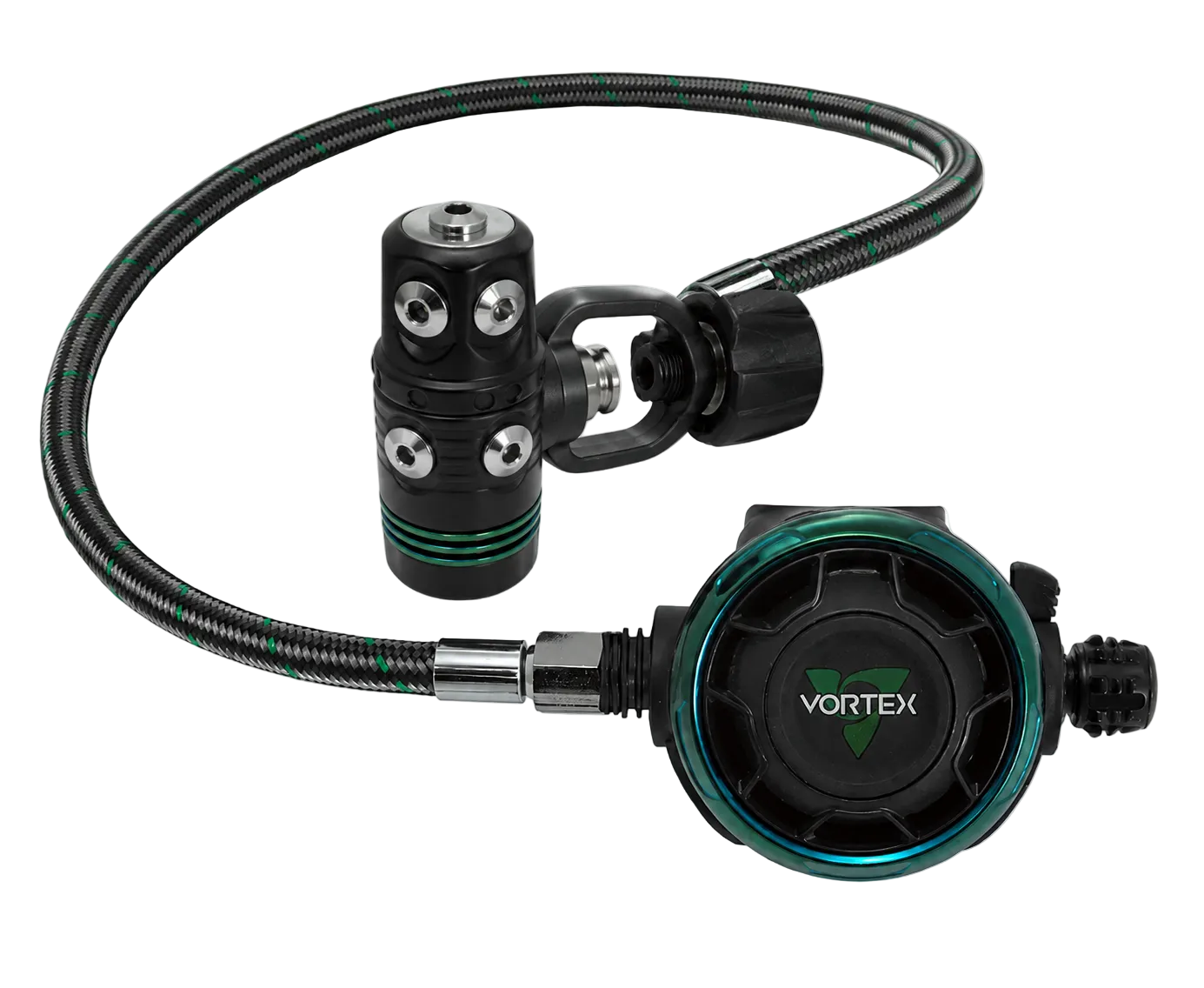

• Complete Vortex Regulator – Yoke

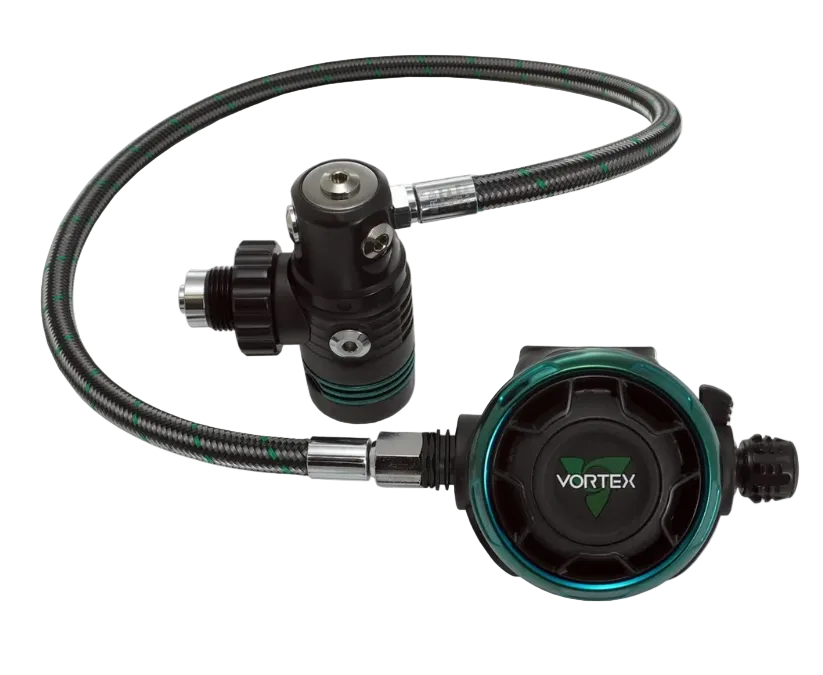

• Complete Vortex Regulator – DIN
• Vortex First Stage – Yoke
• Vortex First Stage – DIN
• Vortex Second Stage (without hose)

Specifications:

First Stage

• Balanced Diaphragm Design
• Environmentally Sealed
• Rotating Swivel Turret
• Fifth Low-Pressure Port
• Four Standard Low-Pressure Ports
• Two High-Pressure Ports
• Black Chrome Finish
• PVD-Coated Heat Exchanger
• Nitrox Compatible to EAN40

Second Stage

• Pneumatically Balanced
• Adjustable Breathing Resistance
• Integrated Venturi Control
• Heat Exchanger
• Reversible Left/Right Configuration
• Orthodontic Comfo-Bite Mouthpiece
• Limited-Throw Purge Button
• Technician Micro-Adjustment Feature

Hose

• Premium Miflex Braided Low-Pressure Hose

Included Components:

• Highland Vortex First Stage
• Highland Vortex Second Stage
• Miflex Braided Hose
• Owner's Manual

Ideal For:

• Public safety diving
• Technical diving
• Cold-water diving
• Wreck diving
• Sidemount diving
• Twin-cylinder diving
• Recreational diving
• Nitrox diving
• Professional dive operations
