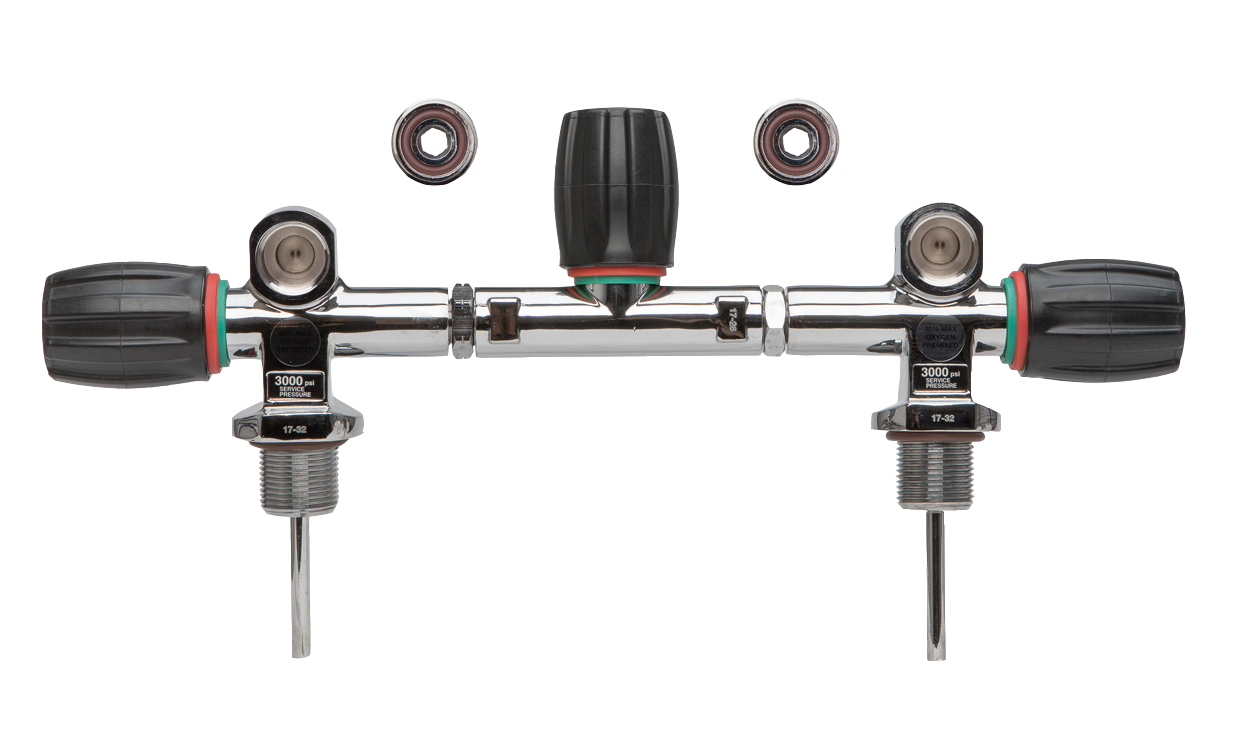

Xs scuba isolation pro manifold – din/yoke convertible, dual valve system

Description

The XS Scuba Isolation PRO Manifold is engineered for serious divers who demand reliability, precision, and safety in their twin-cylinder setups. Designed for technical and advanced recreational diving, this high-performance manifold features a DIN/Yoke convertible PRO valve system with a removable spin-out insert, offering maximum versatility across different configurations.

Built with durability and smooth operation in mind, the manifold utilizes a high-strength brass on/off seat with a nylon insert and Teflon® plating, ensuring long-lasting performance and effortless valve operation. The integrated XS Scuba Safety Handwheel provides a clear visual indication that your valve is fully open, enhancing safety and awareness during dives.

With just 1.5 turns from fully open to fully closed, this manifold allows for quick and precise control in critical situations. The isolation valve design enables divers to manage gas supply between cylinders, adding an extra layer of redundancy and safety for technical diving environments.

Modular access plugs are included, allowing the manifold to be configured as independent single valves when needed. Designed to meet CGA V9-2009 standards, this manifold delivers trusted performance for demanding dive applications.

Key Features:

• PRO DIN/Yoke convertible valve with removable spin-out insert
• XS Scuba Safety Handwheel – visual confirmation when valve is fully open
• Quick operation: 1.5 turns from fully open to fully closed
• Isolation manifold design for redundant gas management
• Center-to-center spacing: 215 mm (8.46”) ± 5 mm (0.2”)
• Standard 3/4”-14 NPSM inlet threads
• Durable brass on/off seat with nylon insert and Teflon® plating
• One-piece internal safety assembly for added protection
• O-ring sealed bonnet for leak prevention
• Includes modular access plugs (R/L) for single valve conversion
• Screw-in dip tube with hex wrench tightening feature
• Meets CGA V9-2009 standards

Ideal For:

• Technical divers
• Twin-cylinder (doubles) setups
• Advanced recreational divers
• Redundant gas management systems
